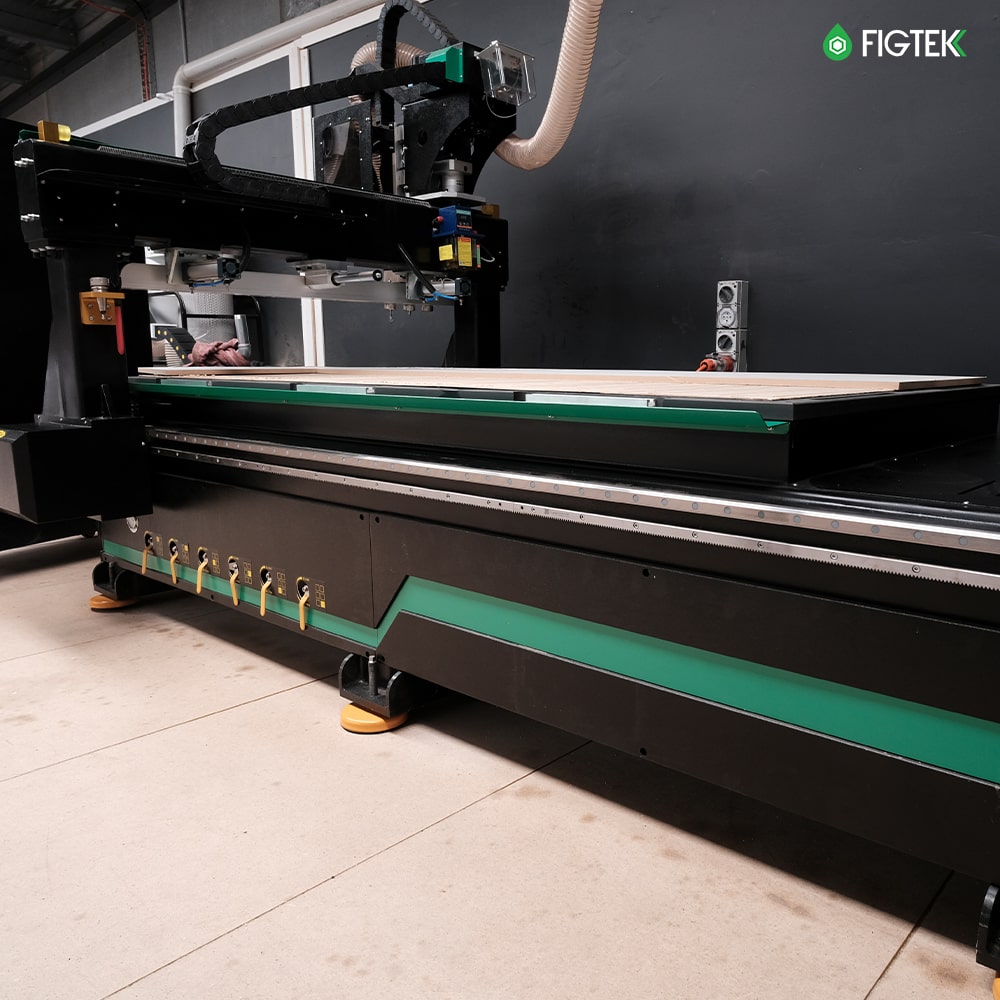

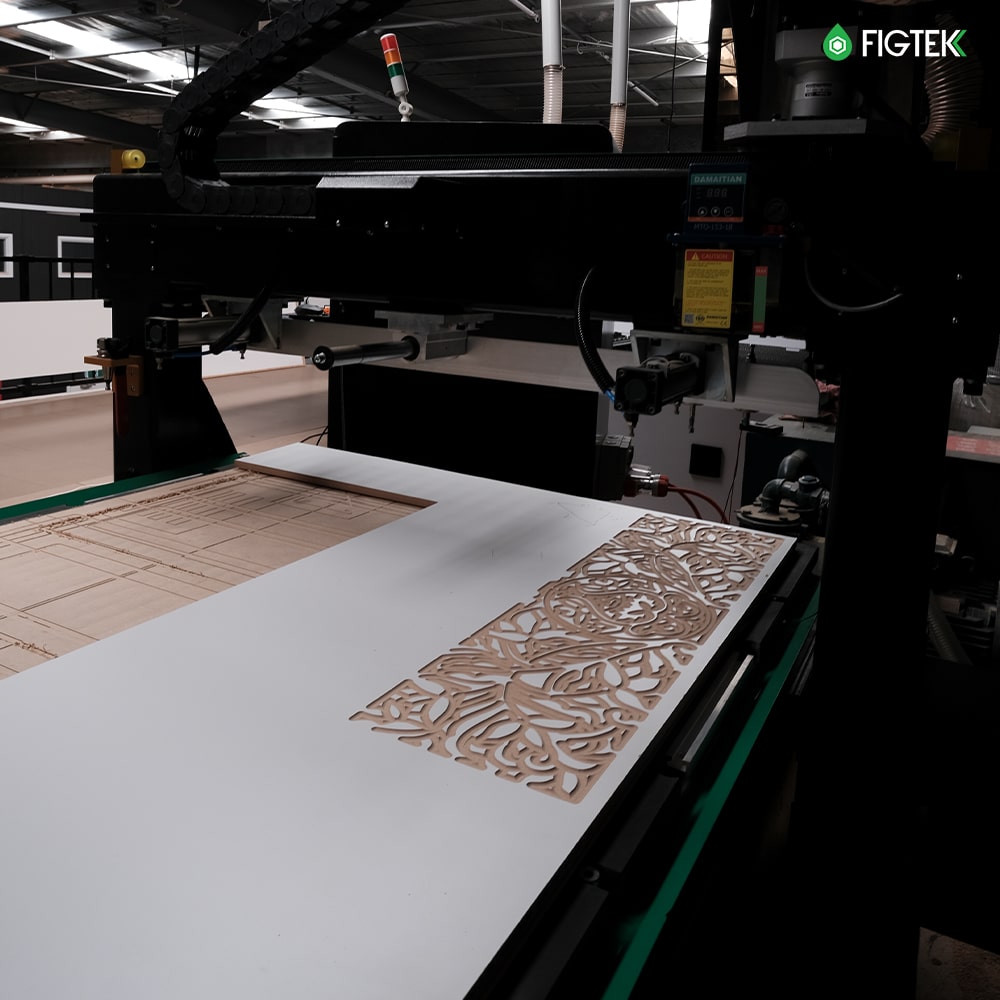

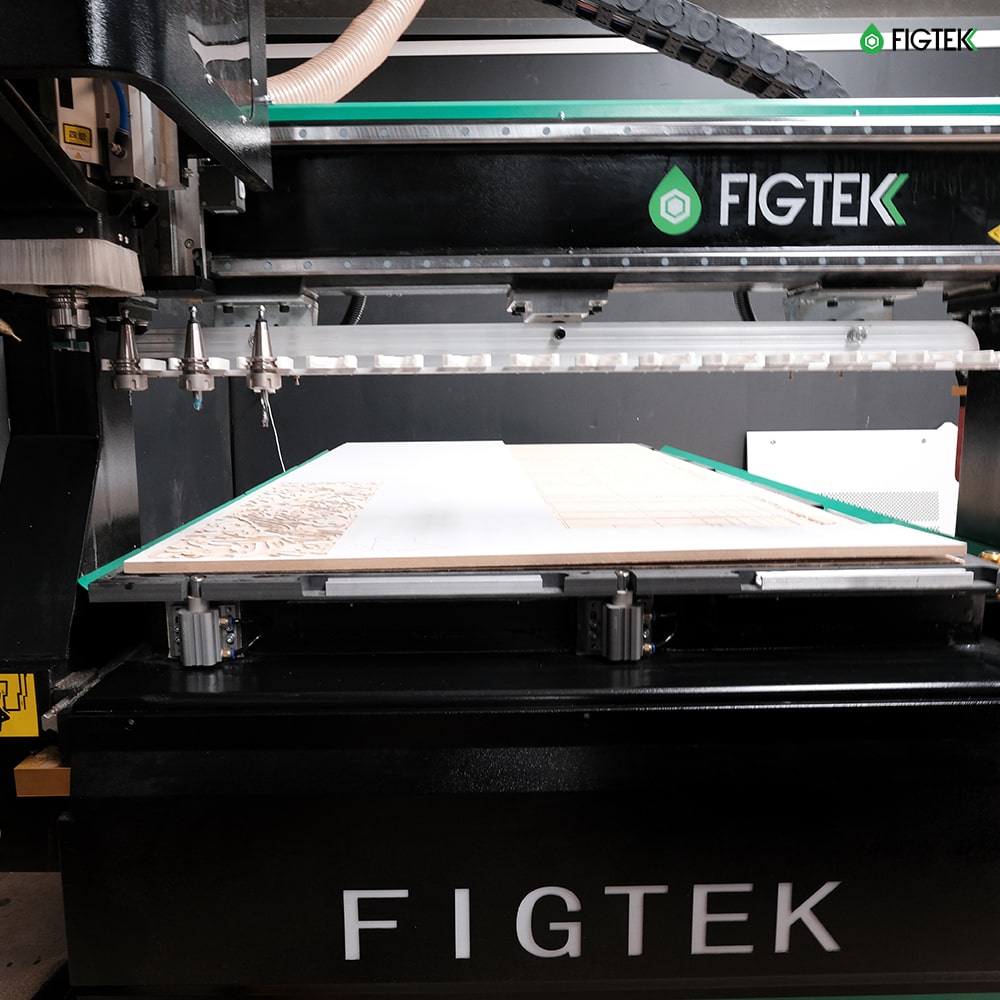

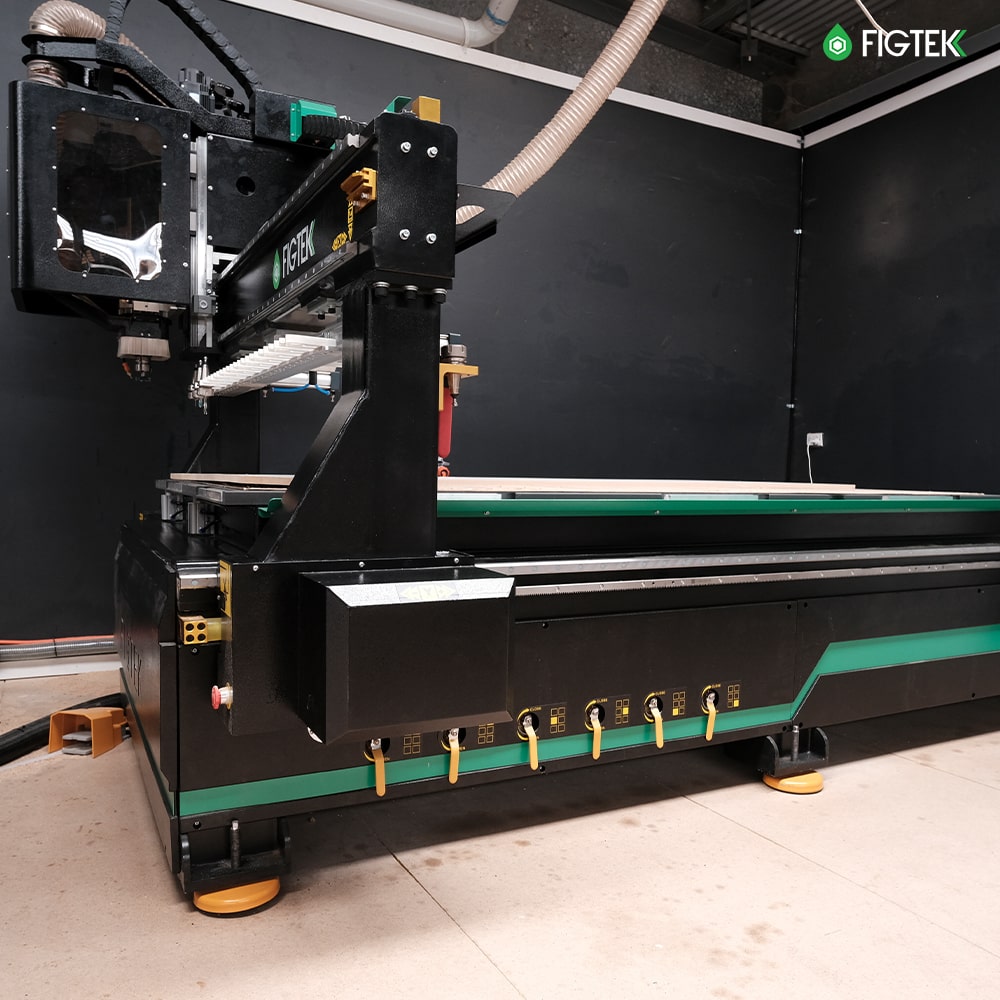

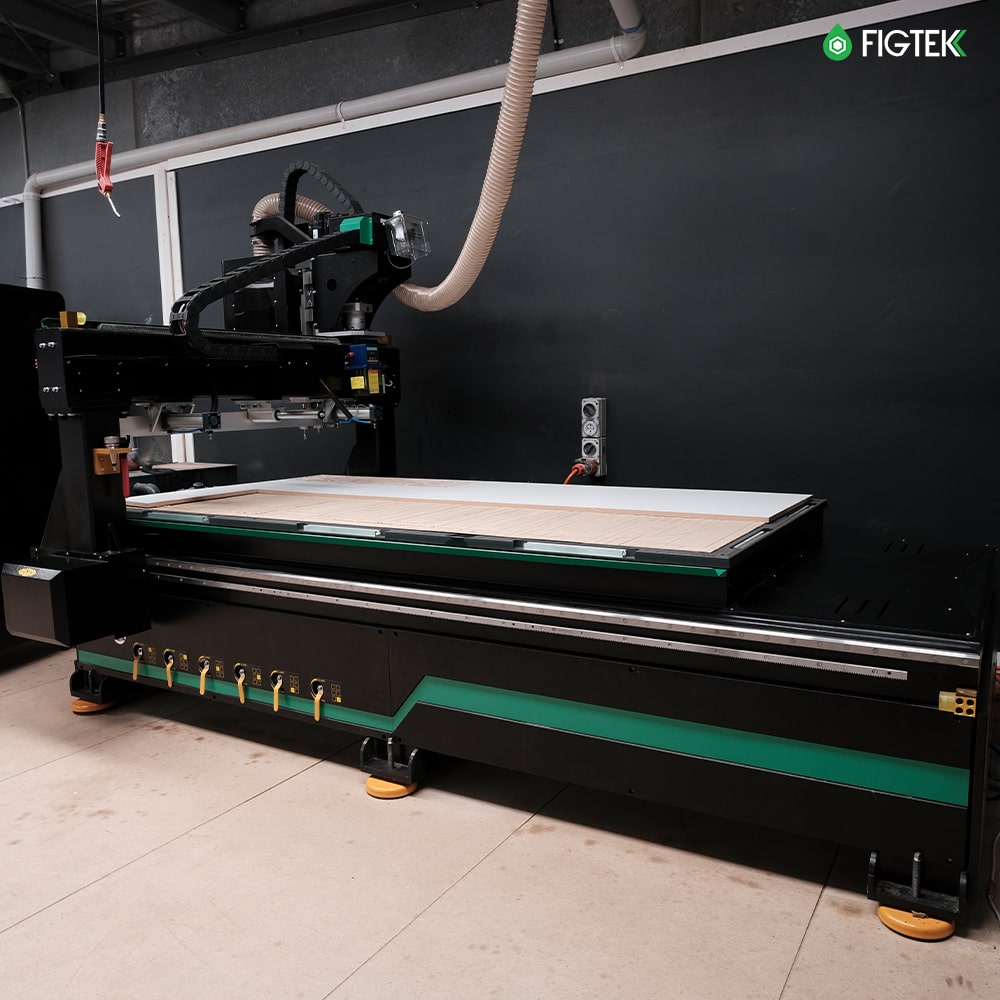

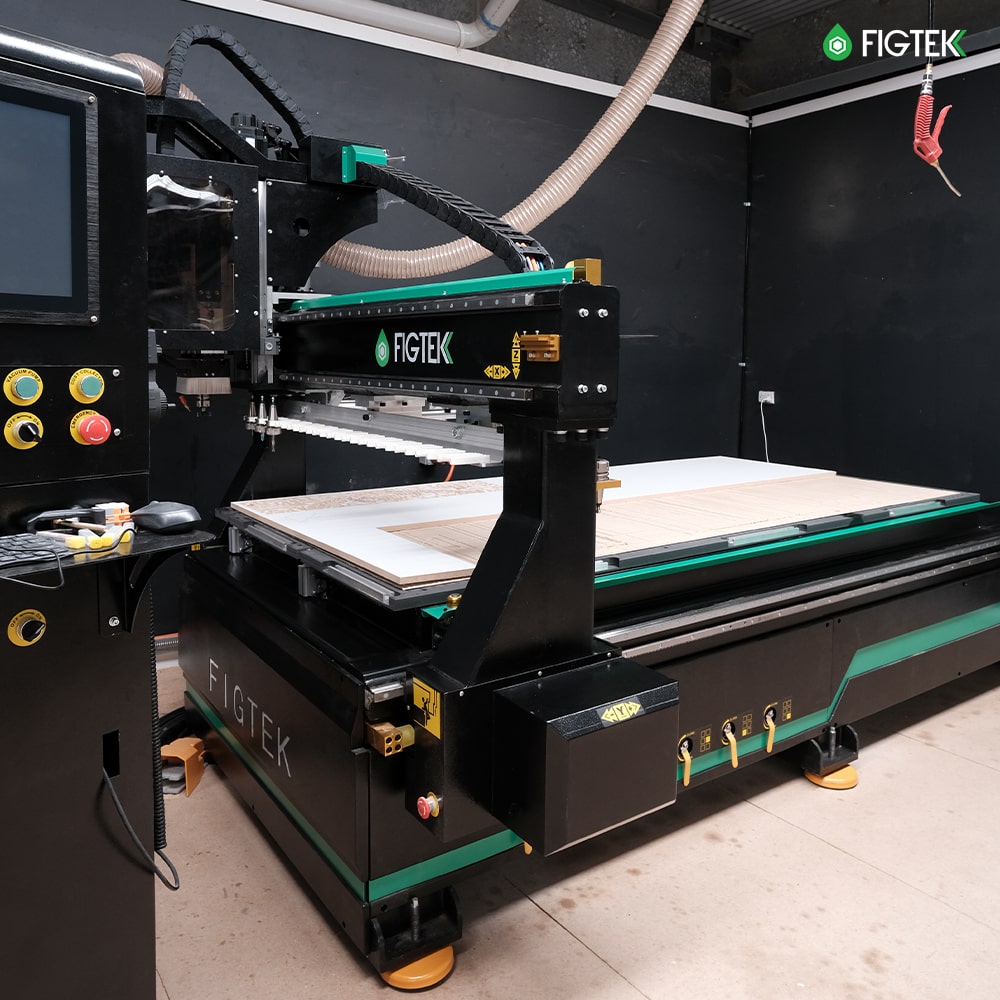

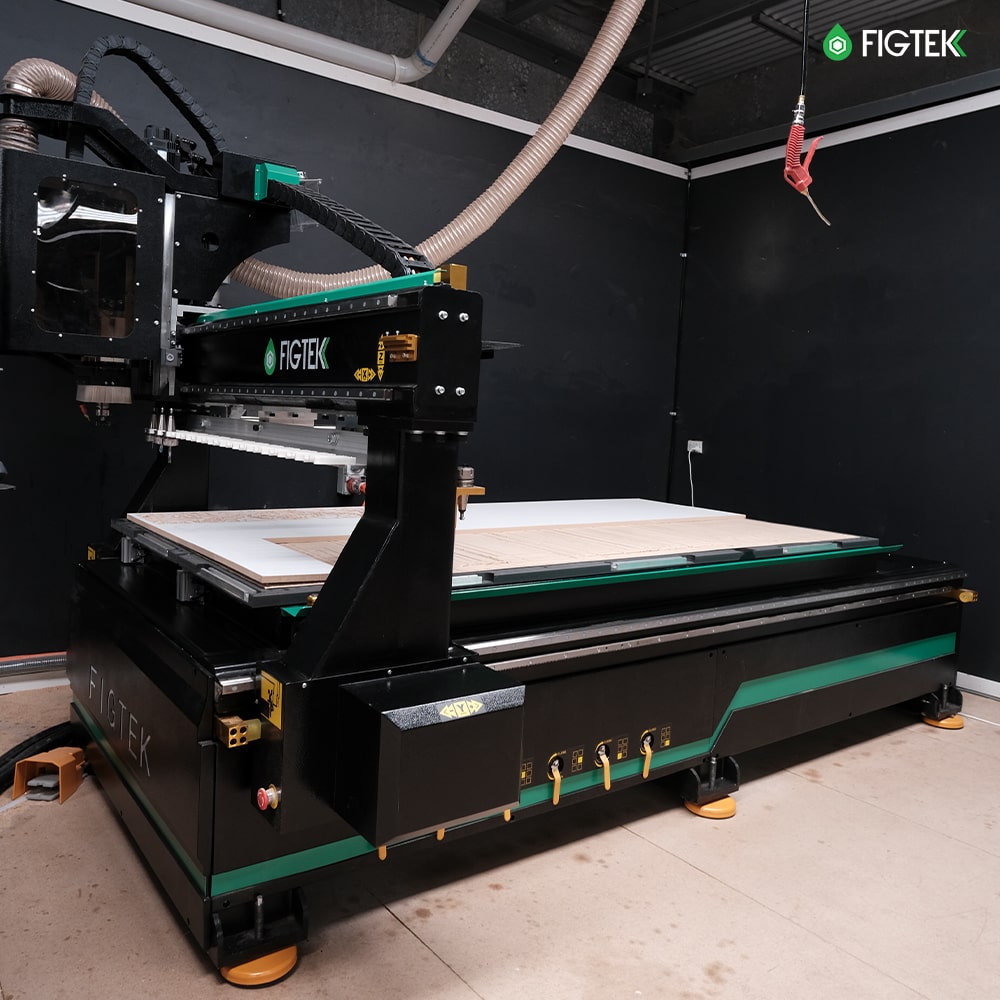

LNC 1325 ATC Router

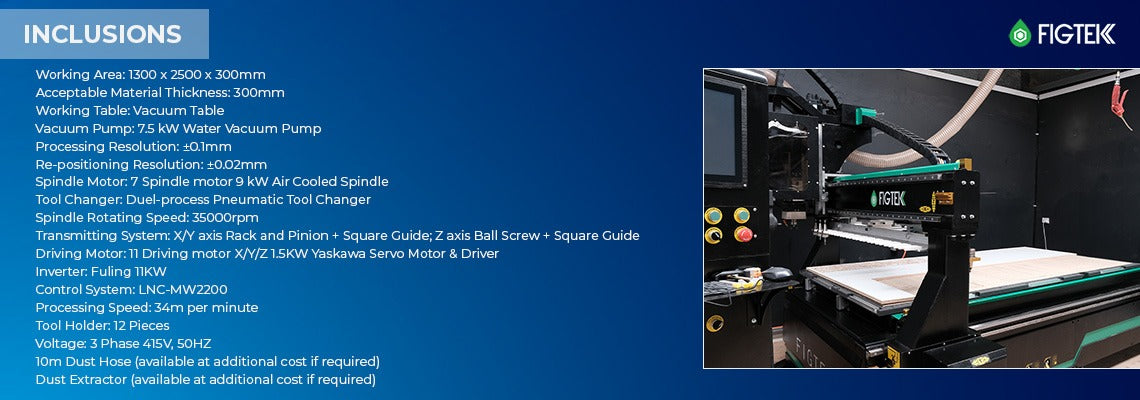

Inclusion:

• Working Area: 1300 x 2500 x 300mm
• Acceptable Material Thickness: 300mm
• Working Table: Vacuum Table
• Vacuum Pump: 7.5 kW Water Vacuum Pump
• Processing Resolution: ±0.1mm
• Re-positioning Resolution: ±0.02mm
• Spindle Motor: 7 Spindle motor 9 kW Air Cooled Spindle
• Tool Changer: Duel-process Pneumatic Tool Changer
• Spindle Rotating Speed: 35000rpm
• Transmitting System: X/Y axis Rack and Pinion + Square Guide; Z axis Ball Screw + Square Guide
• Driving Motor: 11 Driving motor X/Y/Z 1.5KW Yaskawa Servo Motor & Driver
• Inverter: Fuling 11KW
• Control System: LNC-MW2200
• Processing Speed: 34m per minute
• Tool Holder: 12 Pieces
• Voltage: 3 Phase 415V, 50HZ
• 10m Dust Hose (available at additional cost if required)
• Dust Extractor (available at additional cost if required)

Is This Machine Right For Your Business?

Best Suited For:

·        Cabinet Makers

·        Joinery Workshops

·        Kitchen Manufacturers

·        Shopfitters

·        Signage Manufacturers

·        Furniture Manufacturers

·        Exhibition Display Builders

·        Caravan Manufacturers

·        Timber Fabrication

·        Plastic Fabrication

·        Composite Panel Processing

·        Educational Institutions

Materials This Machine Can Cut

·        MDF

·        Plywood

·        Solid Timber

·        Melamine

·        Particle Board

·        Laminates

·        Acrylic

·        PVC

·        Foam Board

·        Composite Panels (ACP)

·        High-Density Plastics

Material suitability depends on tooling, thickness, feeds, speeds, and application.

Why Choose the LNC 1325 ATC CNC Router?

·        Automatic Tool Changer (ATC)

·        High-Speed Precision Routing

·        Reduced Setup Time

·        Increased Productivity

·        Ideal for Nested-Based Manufacturing

·        Excellent Edge Finish

·        Handles Multiple Materials

·        Reliable Industrial Performance

·        Built for Daily Production

Support Every Step of the Way

When you purchase a machine from Figtek Industry, you're not just buying equipment. You'll receive ongoing support to help get your machine up and running successfully.

Services We Offer

·        Australia-Wide Delivery

·        Professional Installation

·        Machine Commissioning

·        Machine Calibration

·        On-Site Training

·        Machine Setup & Configuration

·        Technical Support

·        After-Sales Assistance

·        Spare Parts Supply

·        Service & Maintenance

·        Phone & Email Support

What You Can Expect?

·        Delivery to your workshop anywhere in Australia

·        Professional installation by our experienced team

·        Machine commissioning to ensure everything is operating correctly

·        Calibration and testing before handover

·        Practical, hands-on training for machine operation

·        Software training to help you get started with confidence

·        Ongoing technical support whenever you need assistance

Why Choose Figtek Industry?

At Figtek Industry, we're committed to providing more than just machinery.
We deliver complete solutions backed by reliable Australian support. From Australia-wide delivery and professional installation through to commissioning, calibration, and on-site training, our experienced team is with you every step of the way. We provide practical advice to help you get the most from your machine, along with ongoing technical support, spare parts, servicing, and after-sales assistance. Whether you're purchasing your first CNC machine or expanding your workshop, you can count on friendly local support before, during, and long after your machine is installed.

Machines Installed Across Australia
