CNC Router
FIGTEK CNC Router 1330
$19,499.00
inc. GST
Inclusion:
Working Area: 1300 x 3000 x 300mm
9 kW Air Cooled Spindle
7.5KW Fuling inverter
DSP A11 handle controller system with USB port
Stepper motor 450B and Leadshine 860H drivers
Welded machine structure, frame structure
Helical...
✉ Enquire about this machine
✓ Full machine commissioning available.
✓ On-Site Training available
✓ Australian technical support and local warranty
✓ Delivery and location-specific installation charges confirmed in your quote
Product Details
About this machine
Inclusion:

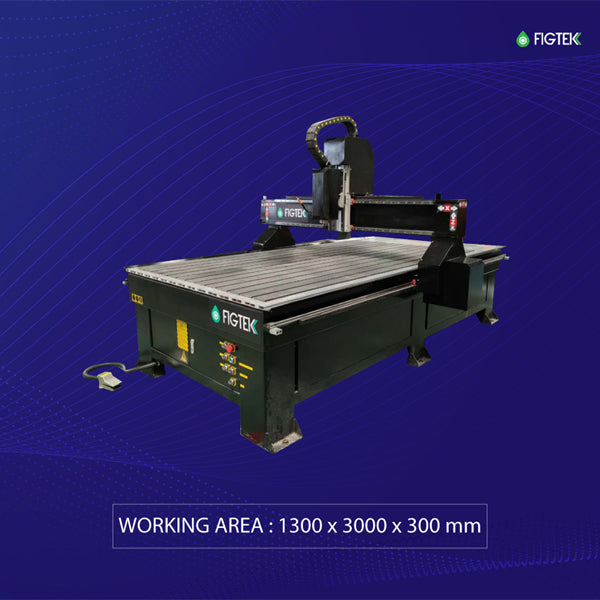

- Working Area: 1300 x 3000 x 300mm

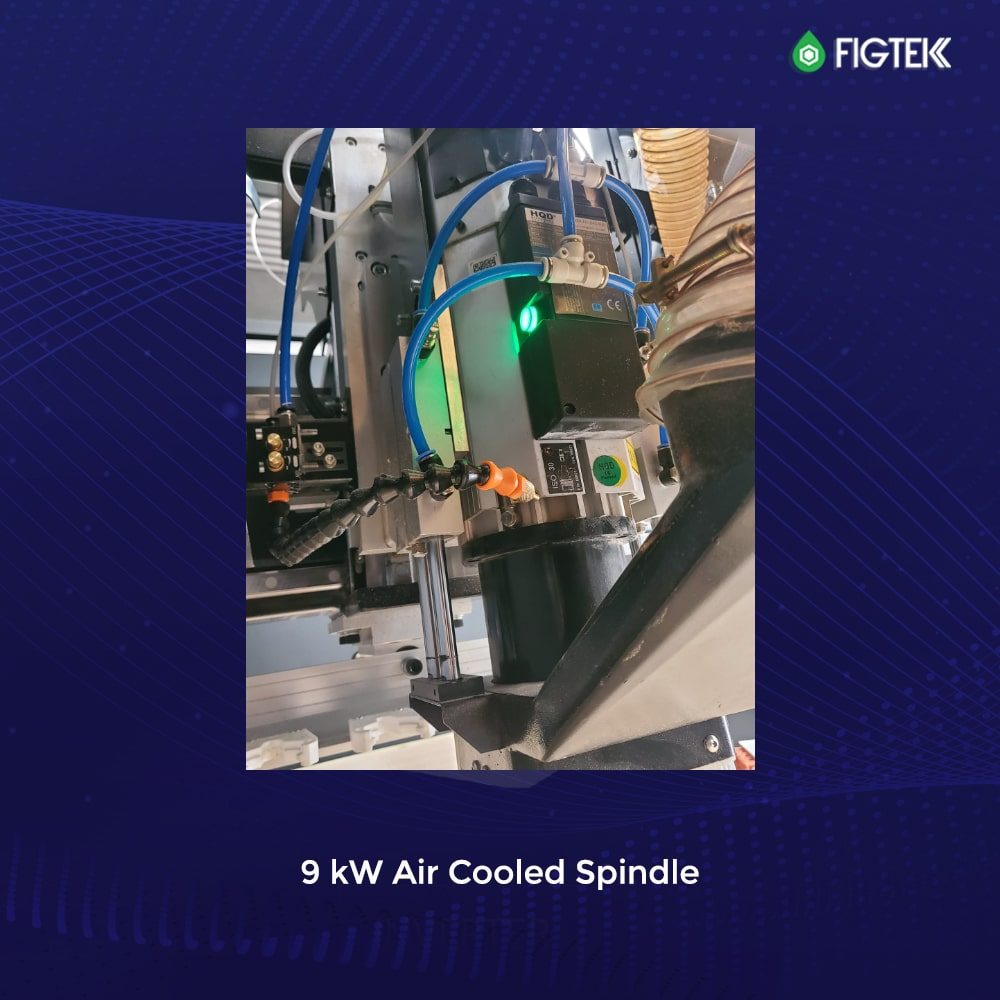

- 9 kW Air Cooled Spindle
- 7.5KW Fuling inverter

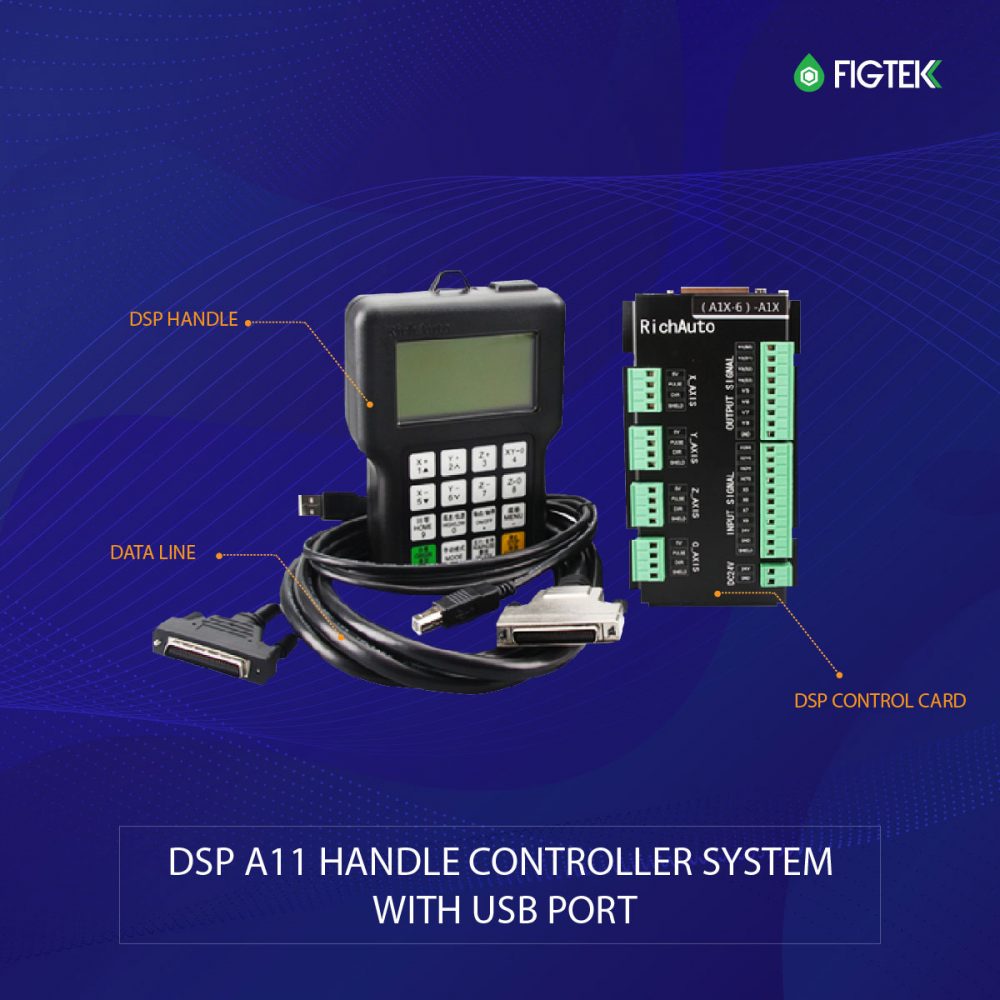

- DSP A11 handle controller system with USB port

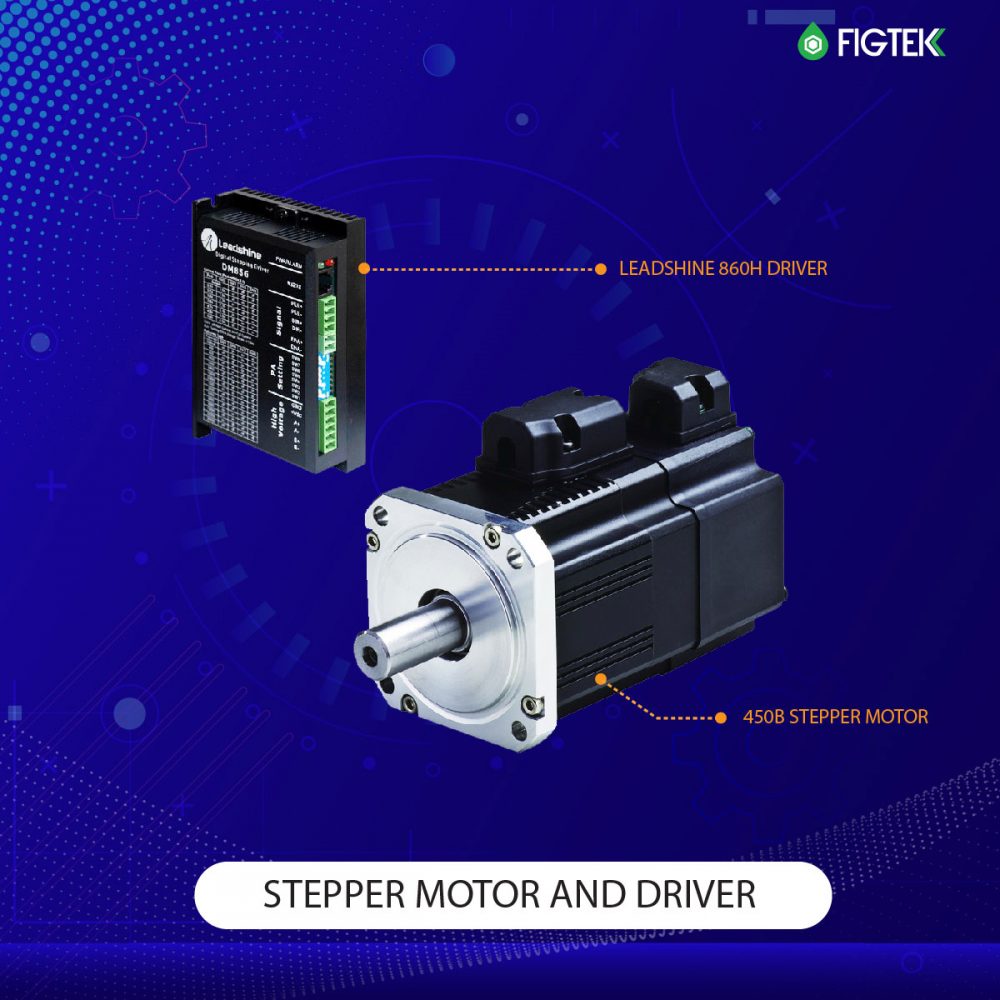

- Stepper motor 450B and Leadshine 860H drivers
- Welded machine structure, frame structure
- Helical rack and pinion for X-Y axis
- Taiwan TBI ball screw for Z Axis
- T-slot working table
- Water mist sprayer for soft metal
- Highly flexible towline, fire-resistant double-sheathed cable
- Japan OMRON limit switch for X, Y, Z axis
- 10m dust hose (available at additional cost if required)
Important Disclaimer
Specifications, features and pricing are subject to change without notice. Images are for illustration purposes only and may not represent the exact product. Figtek Industry reserves the right to modify machine specifications to improve quality and performance. All prices are in AUD and include GST. Delivery and installation charges may apply depending on location. Please contact us to confirm current availability and specifications before placing an order.
