Machinery
FIGTEK 45° Bevel Edgebander
$31,999.00
inc. GST
Inclusions:
Automatic 45° bevel edge banding system
Straight-edge and bevel-edge processing in one machine
Suitable for 45° handleless and finger-pull cabinet panels
Processes both straight and bevelled panel edges
Designed for cabine...
✉ Enquire about this machine
✓ Full machine commissioning available.
✓ On-Site Training available
✓ Australian technical support and local warranty
✓ Delivery and location-specific installation charges confirmed in your quote
Product Details
About this machine
Inclusions:
- Automatic 45° bevel edge banding system
- Straight-edge and bevel-edge processing in one machine
- Suitable for 45° handleless and finger-pull cabinet panels
- Processes both straight and bevelled panel edges
- Designed for cabinetry, joinery and panel manufacturing
- Double pre-milling cutter system
- Precision 45° bevel pre-milling
- Automatic glue application
- Edge tape grooving system
- Automatic edge pressing
- End trimming unit
- Fine trimming unit
- Edge scraping unit Buffing and polishing unit

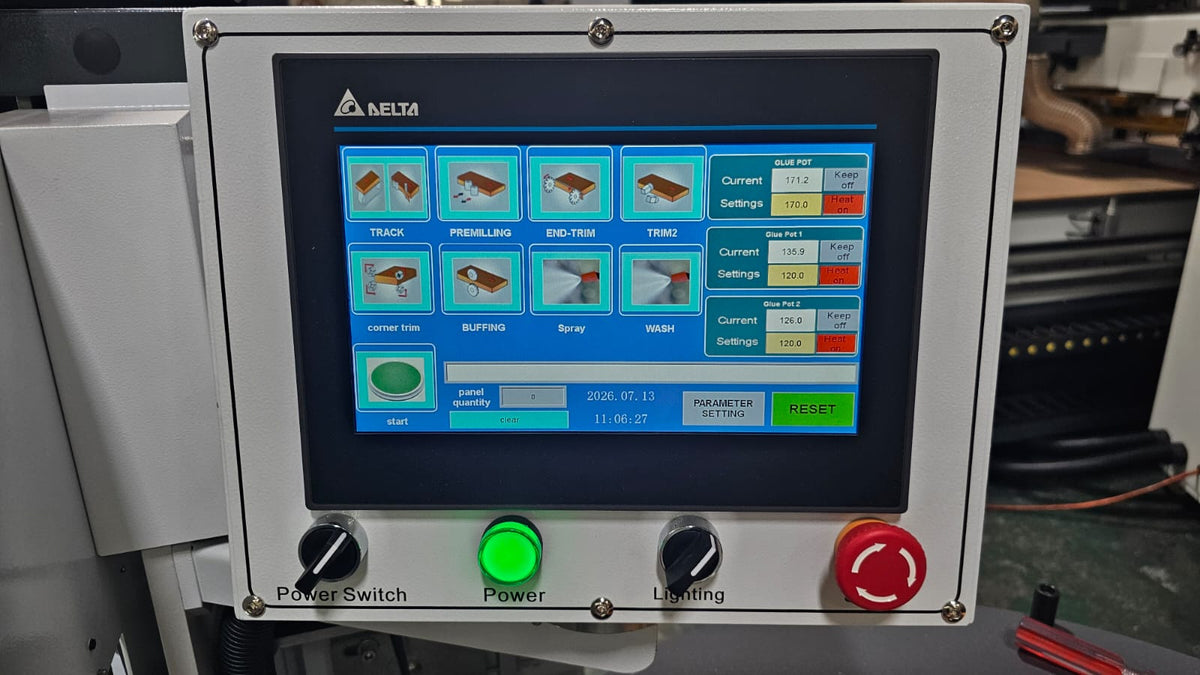

- Integrated touchscreen control panel
- Adjustable feed speed and processing settings
- Pneumatic pressure system
- Automatic panel feeding system
- Enclosed upper safety covers
- Dust extraction connection points
- Heavy-duty industrial machine frame
- Consistent single-pass panel processin
Operational Parameters
- Total power: 12.55kW
- Feed speed: 9m/min
- Edge thickness: 0.8–2mm
- Panel thickness: 15–25mm
- Minimum panel length: 200mm
- Minimum panel width: 120mm
- Working air pressure: 0.6–0.8MPa
- Overall dimensions: 3750 × 650 × 1540mm
- Processing capability: Straight edges and 45° bevel edges
Important Disclaimer
Specifications, features and pricing are subject to change without notice. Images are for illustration purposes only and may not represent the exact product. Figtek Industry reserves the right to modify machine specifications to improve quality and performance. All prices are in AUD and include GST. Delivery and installation charges may apply depending on location. Please contact us to confirm current availability and specifications before placing an order.
