CNC Router

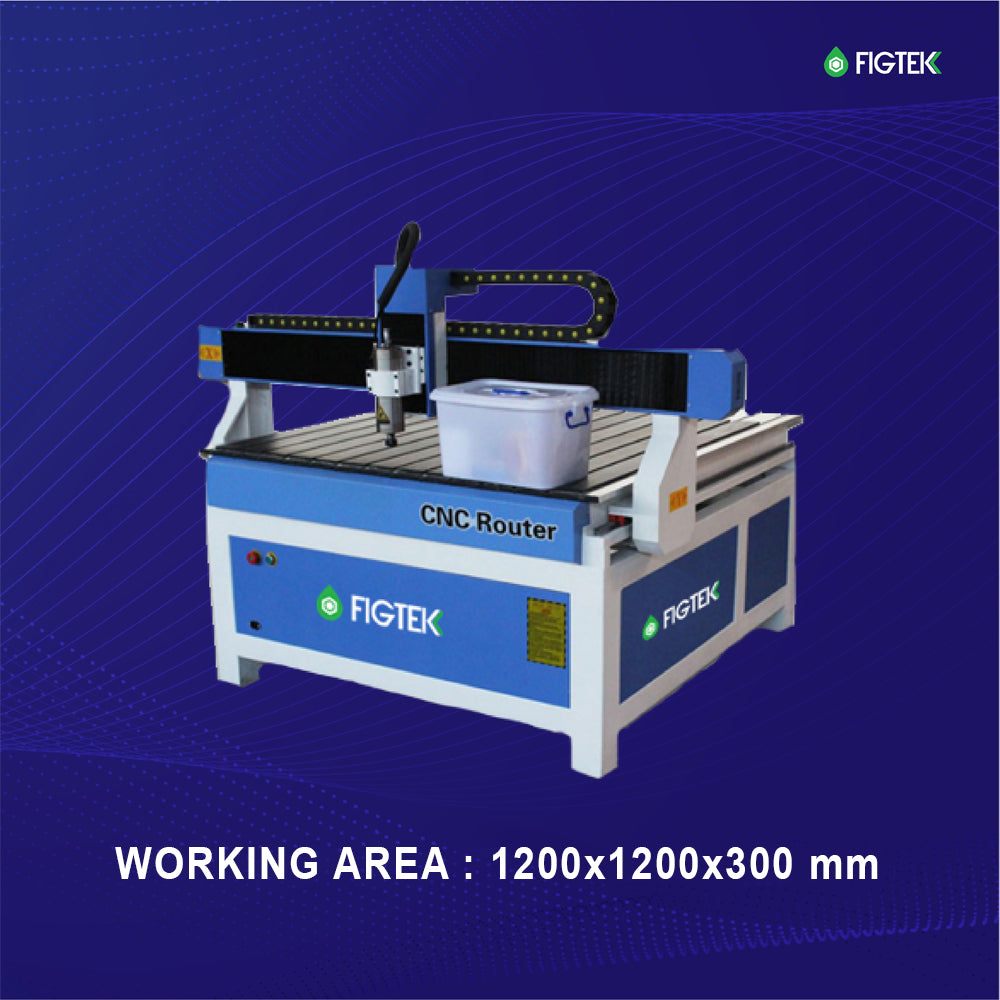

FIGTEK 1212 Advertising CNC Router
$11,150.00
inc. GST
Inclusion:
Groove steel structure
Working area: 1200 x 1200mm x 300mm
9 kW Air Cooled Spindle
Stepper Motor & Driver & Reducer
T-Slot Table
DSP A11 Control System
Taiwan 20 Hiwin square rail
Omron Limited Switch
Fuling Invert...
✉ Enquire about this machine
✓ Full machine commissioning available.
✓ On-Site Training available
✓ Australian technical support and local warranty
✓ Delivery and location-specific installation charges confirmed in your quote
Product Details
About this machine
Inclusion:
- Groove steel structure
- Working area: 1200 x 1200mm x 300mm
- 9 kW Air Cooled Spindle

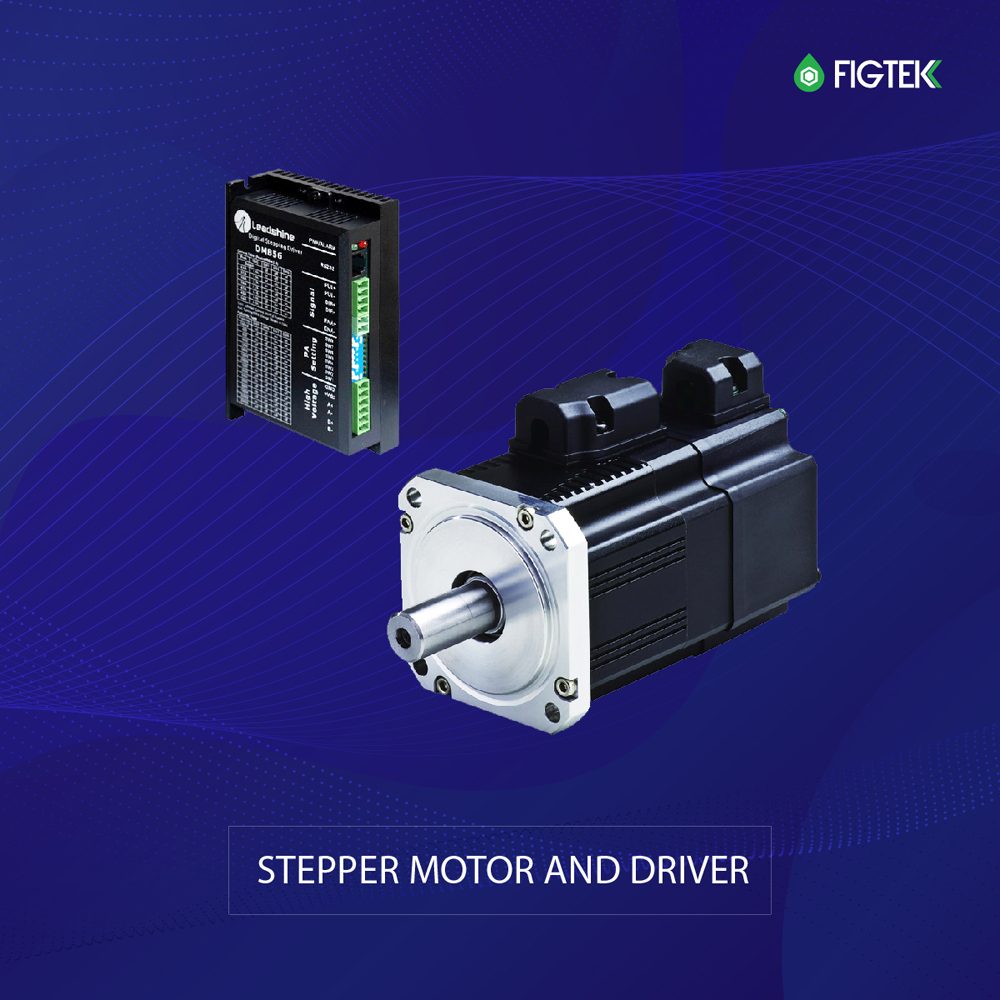

- Stepper Motor & Driver & Reducer

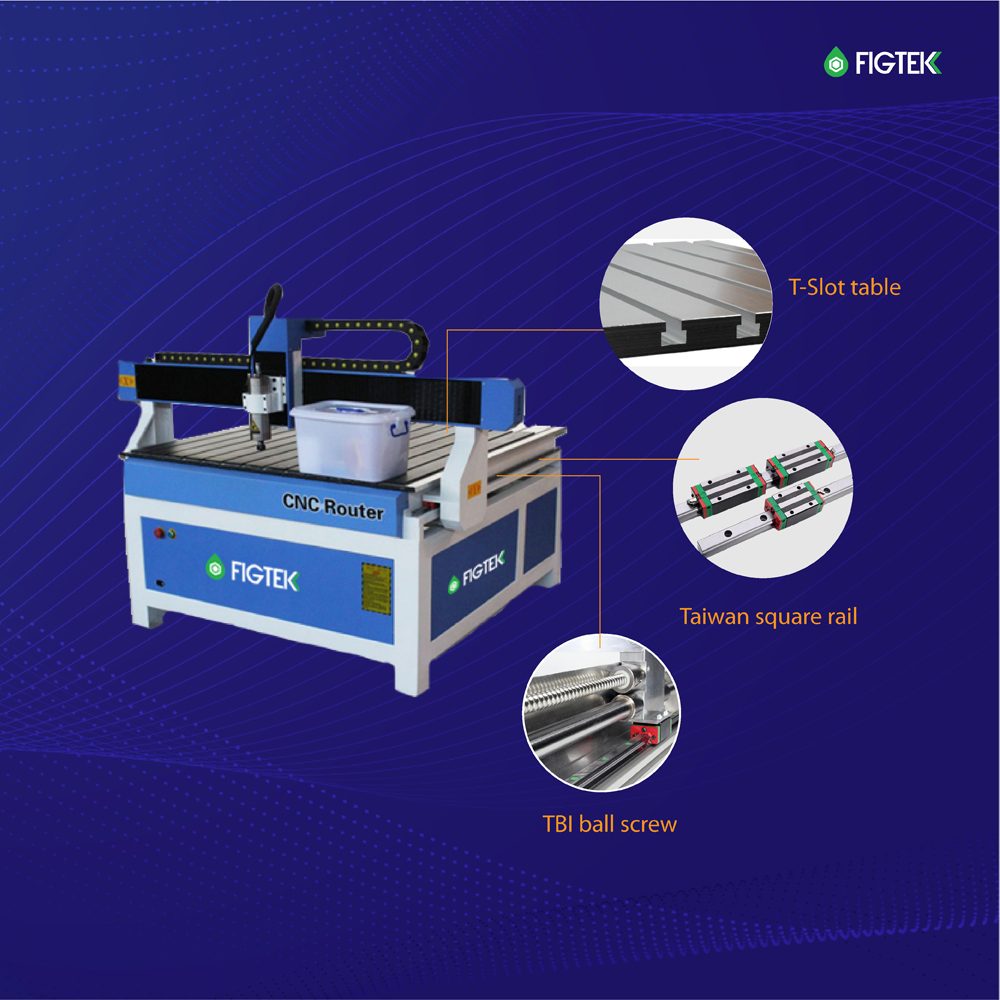

- T-Slot Table

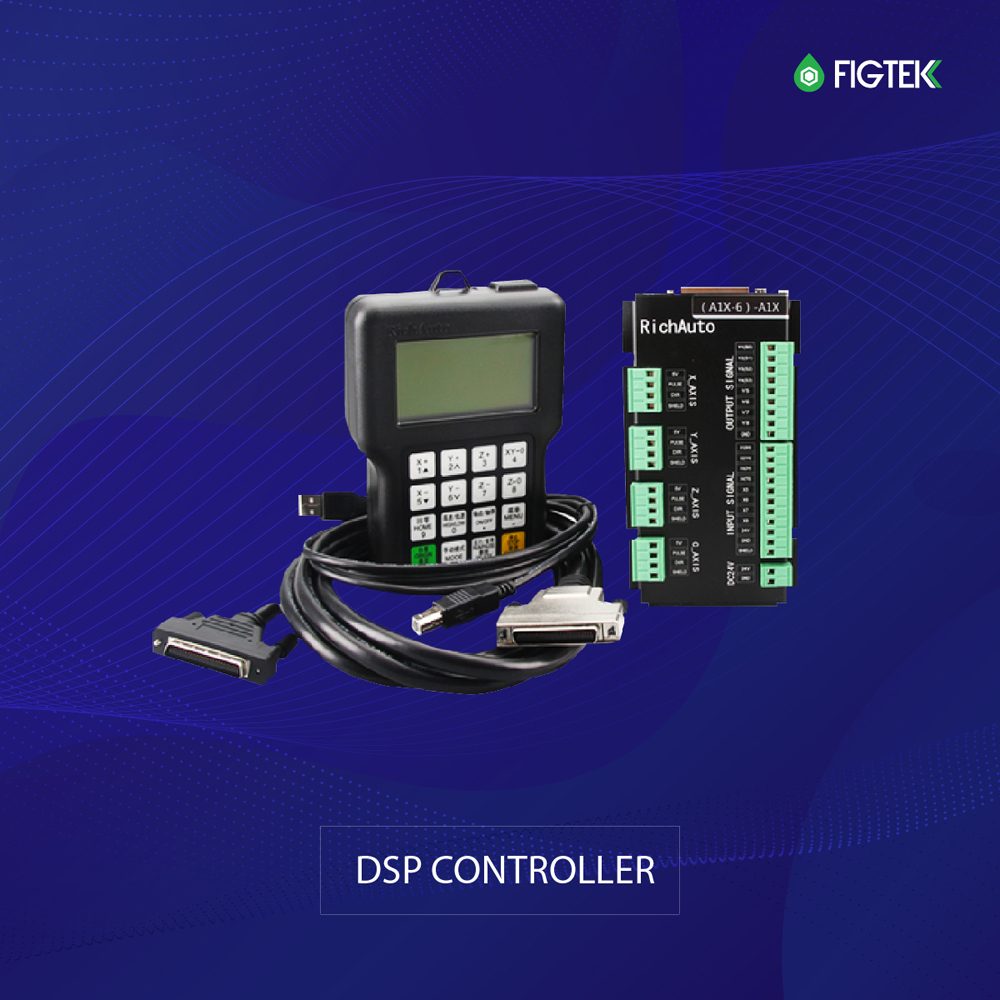

- DSP A11 Control System
- Taiwan 20 Hiwin square rail
- Omron Limited Switch

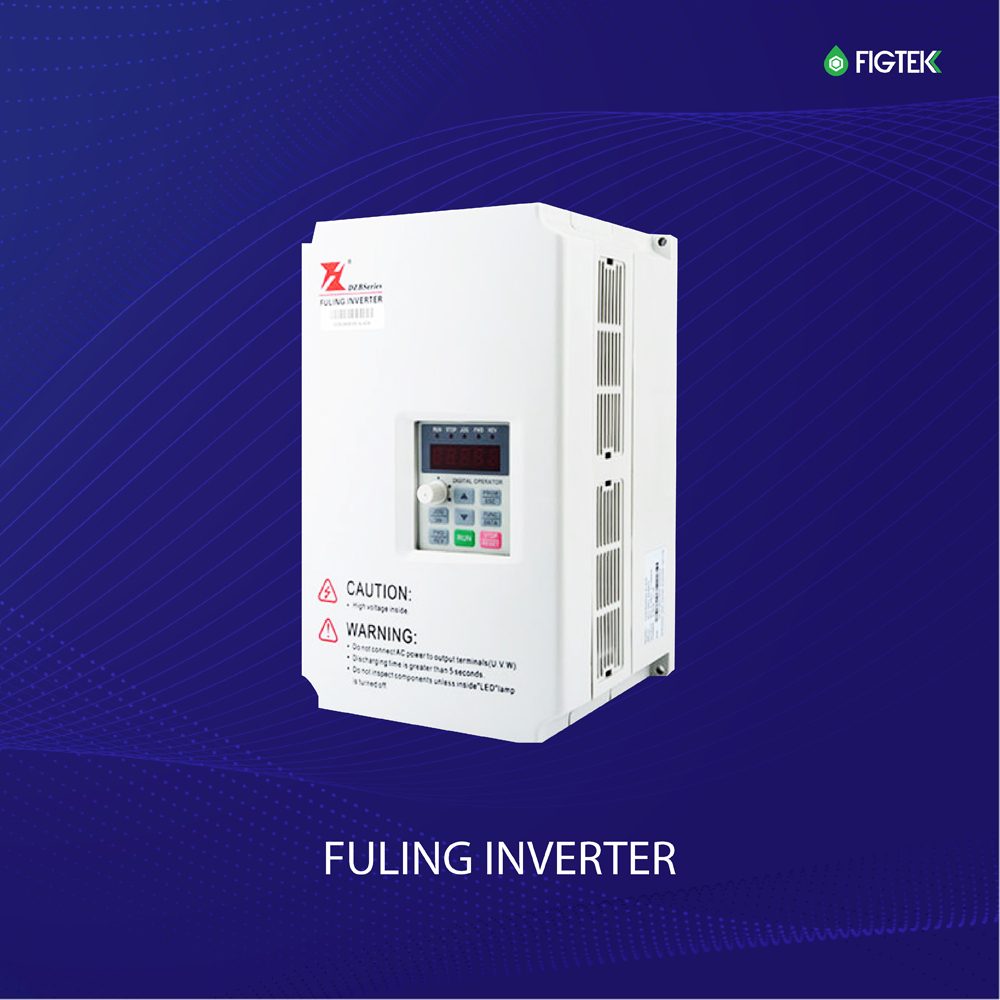

- Fuling Inverter
- Automatic oil injection system
- Transmission:X Ball Screw &Y Rack and Gear; Z Axis TBI Ball Screw
- Artcam Software
- Position Cylinder/Tool Sensor
- Vacuum Bed with 1 pump and air mister Position Cylinder.
- Dust Collector (available at additional cost if required)
- 10m dust hose (available at additional cost if required)
Important Disclaimer
Specifications, features and pricing are subject to change without notice. Images are for illustration purposes only and may not represent the exact product. Figtek Industry reserves the right to modify machine specifications to improve quality and performance. All prices are in AUD and include GST. Delivery and installation charges may apply depending on location. Please contact us to confirm current availability and specifications before placing an order.
